Specification
| Product | Radar level meter |
| Model | SIN-RD904 |
| Measure range | 0-80 meters |
| Application | Solid material, Strong dust, easy to crystallize, condensation occasion |
| Process Connection | Universal flange |
| Medium Temperature | (-40～130)°C (standard type) (-40～230)°C (high temperature type) |
| Process Pressure | -0.1-0.3 MPa |
| Accuracy | ±25mm |
| Protection Grade | IP67 |
| Frequency Range | 26GHz |
| Signal Output | 4-20mA (Two-wire/Four) |
| RS485/Modbus | |
| Power supply | DC(6~24V)/Four-wire DC 24V / Two-wire |
- Introduction

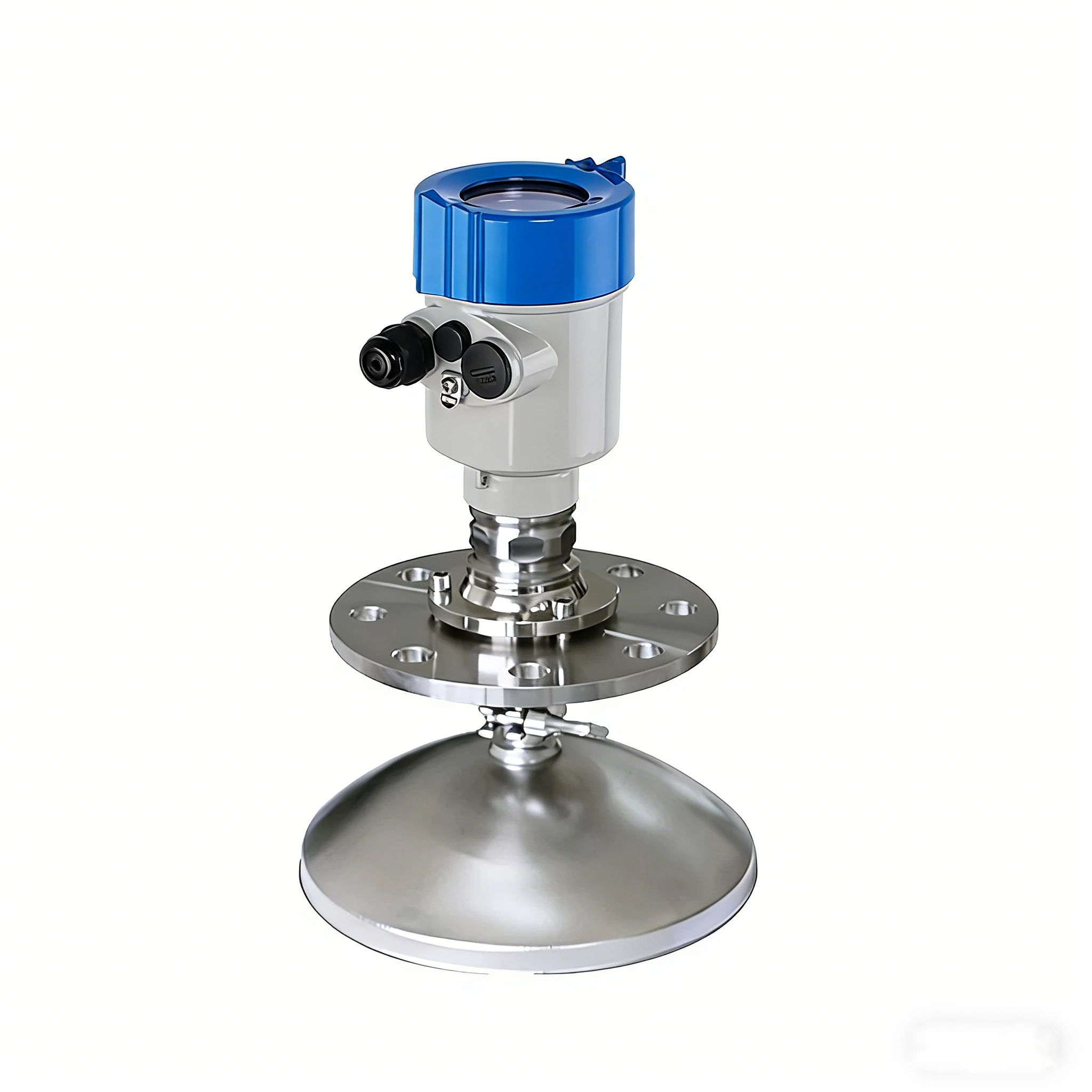

SIN-RD904 Radar level meter adopts a recommended industry emission frequency of 26GHz. The measurement range of up to 80 meters, covering a large reservoir water level measurement.
